The Douglas A-1 (formerly AD) Skyraider was an American single-seat attack aircraft that saw service between the late 1940s and early 1970s. It became a piston-powered, propeller-driven anachronism in the jet age, but had a remarkably long and successful career due to excellent low-speed maneuverability, and ability to carry a tremendous amount of ordnance over a considerable combat radius and loiter time for its size, comparable to much heavier subsonic or supersonic jets.
Design and development
The piston-engined Skyraider was designed during World War II to meet United States Navy requirements for a carrier-based, single-seat, long-range, high performance dive/torpedo bomber, to follow-on from earlier types such as the Curtiss SB2C Helldiver and Grumman TBF Avenger. Designed by Ed Heinemann of the Douglas Aircraft Company, prototypes were ordered on 6 July 1944 as the XBT2D-1. The XBT2D-1 made its first flight on 18 March 1945 and in April 1945, the USN began evaluation of the aircraft at the Naval Air Test Center (NATC). In December 1946, after a designation change to AD-1, delivery of the first production aircraft to a fleet squadron was made to VA-19A.
The AD-1 was built at Douglas' El Segundo plant in Southern California. In his memoir The Lonely Sky, test pilot Bill Bridgeman describes the routine yet sometimes hazardous work of certifying AD-1s fresh off the assembly line at a rate of two aircraft per day for delivery to the U.S. Navy in 1949 and 1950.
The low-wing monoplane design started with a Wright R-3350 Duplex-Cyclone radial engine which was later upgraded several times. Its distinctive feature was large straight wings with seven hard points apiece. The Skyraider possessed excellent low-speed maneuverability and carried a large amount of ordnance over a considerable combat radius. Further, it had a long loiter time for its size, compared to much heavier subsonic or supersonic jets. The aircraft was optimized for the ground-attack mission and was armored against ground fire in key locations, unlike faster fighters adapted to carry bombs, such as the Vought F4U Corsair or North American P-51 Mustang, which were retired by U.S. forces before the 1960s.
Shortly after Heinemann began designing the XBT2D-1, a study was issued that showed for every 100 lb (45 kg) of weight reduction, the takeoff run was decreased by 8 ft (2.4 m), the combat radius increased by 22 mi (35 km) and the rate-of-climb increased by 18 ft/min (0.091 m/s). Heinemann immediately had his design engineers begin a program for finding weight-saving on the XBT2D-1 design, no matter how small. Simplifying the fuel system resulted in a reduction of 270 lb (120 kg); 200 lb (91 kg) by eliminating an internal bomb bay and hanging external stores from the wings or fuselage; 70 lb (32 kg) by using a fuselage dive brake; and 100 lb (45 kg) by using an older tailwheel design. In the end, Heinemann and his design engineers achieved more than 1,800 lb (820 kg) of weight reduction on the original XBT2D-1 design.
The Navy AD series was initially painted in ANA 623 Glossy Sea Blue, but during the 1950s following the Korean War, the color scheme was changed to light gull grey (Fed Std 595 26440) and white (Fed Std 595 27875). Initially using the gray and white Navy scheme, by 1967 the USAF began to paint its Skyraiders in a camouflaged pattern using two shades of green, and one of tan.
Used by the US Navy over Korea and Vietnam, the A-1 was a primary close air support aircraft for the USAF and RVNAF during the Vietnam War. The A-1 was famous for being able to take hits and keep flying thanks to armor plating around the cockpit area for pilot protection. It was replaced beginning in the mid-1960s by the Grumman A-6 Intruder as the Navy's primary medium-attack plane in supercarrier-based air wings; however Skyraiders continued to operate from the smaller Essex-class aircraft carriers.
The Skyraider went through seven versions, starting with the AD-1, then AD-2 and AD-3 with various minor improvements, then the AD-4 with a more powerful R-3350-26WA engine. The AD-5 was significantly widened, allowing two crew to sit side-by-side (this was not the first multiple-crew variant, the AD-1Q being a two-seater and the AD-3N a three-seater); it also came in a four-seat night-attack version, the AD-5N. The AD-6 was an improved AD-4B with improved low-level bombing equipment, and the final production version AD-7 was upgraded to a R-3350-26WB engine.
For service in Vietnam, USAF Skyraiders were fitted with the Stanley Yankee extraction system, which acted in a similar manner to an ejection seat, though with twin rockets extracting pilot from the cockpit.
In addition to serving during Korea and Vietnam as an attack aircraft, the Skyraider was modified to serve as a carrier-based airborne early warning aircraft, replacing the Grumman TBM-3W Avenger. It fulfilled this function in the USN and Royal Navy, being replaced by the Grumman E-1 Tracer and Fairey Gannet, respectively, in those services.
Skyraider production ended in 1957 with a total of 3,180 having been built. In 1962, the existing Skyraiders were redesignated A-1D through A-1J and later used by both the USAF and the Navy in the Vietnam War.
The Skyraider was produced too late to take part in World War II, but became the backbone of United States Navy aircraft carrier and United States Marine Corps strike aircraft sorties in the Korean War (1950–1953), with the first ADs going into action from Valley Forge with VA-55 on 3 July 1950. Its weapons load and 10-hour flying time far surpassed the jets that were available at the time. On 2 May 1951, Skyraiders made the only aerial torpedo attack of the war, hitting the Hwacheon Dam, then controlled by North Korea.
On 16 June 1953, a USMC AD-4 from VMC-1 piloted by Major George H. Linnemeier and CWO Vernon S. Kramer shot down a Soviet-built Polikarpov Po-2 biplane, the only documented Skyraider air victory of the war. AD-3N and -4N aircraft carrying bombs and flares flew night-attack sorties, and radar-equipped ADs carried out radar-jamming missions from carriers and land bases.
During the Korean War, AD Skyraiders were flown by only the U.S. Navy and U.S. Marine Corps, and were normally painted in dark navy blue. It was called the "Blue Plane" by enemy troops. Marine Corps Skyraiders suffered heavy losses when used in low-level close-support missions. To allow low-level operations to continue without unacceptable losses, a package of additional armor was fitted, consisting of 0.25–0.5 inches (6.4–12.7 mm) thick external aluminum armor plates fitted to the underside and sides of the aircraft's fuselage. The armor package weighed a total of 618 pounds (280 kg) and had little effect on performance or handling. A total of 128 Navy and Marine AD Skyraiders were lost in the Korean War – 101 in combat and 27 to operational causes. Most operational losses were due to the tremendous power of the AD. ADs that were "waved-off" during carrier recovery operations were prone to performing a fatal torque roll into the sea or the deck of the aircraft carrier if the pilot mistakenly gave the AD too much throttle. The torque of the engine was so great that it would cause the aircraft to rotate about the propeller and slam into the sea or the carrier.
Cathay Pacific VR-HEU incident
On 26 July 1954, two Douglas Skyraiders from the aircraft carriers USS Philippine Sea and Hornet shot down two Chinese PLAAF Lavochkin fighters off the coast of Hainan Island while searching for survivors after the shooting down of a Cathay Pacific Douglas DC-4 Skymaster airliner three days previously.
As American involvement in the Vietnam War began, the A-1 Skyraider was still the medium attack aircraft in many carrier air wings, although it was planned to be replaced by the A-6A Intruder as part of the general switch to jet aircraft. Skyraiders from Constellation and Ticonderoga participated in the first U.S. Navy strikes against North Vietnam on 5 August 1964 as part of Operation Pierce Arrow in response to the Gulf of Tonkin Incident, striking against fuel depots at Vinh, with one Skyraider from Ticonderoga damaged by anti-aircraft fire, and a second from Constellation shot down, killing its pilot.
During the war, U.S. Navy Skyraiders shot down two Vietnam People's Air Force (VPAF) Mikoyan-Gurevich MiG-17 jet fighters: one on 20 June 1965, by Lieutenant Clinton B. Johnson and LTJG Charles W. Hartman III of VA-25; and one on 9 October 1966 by LTJG William T. Patton of VA-176. Using their cannons, this was the first gun kill of the Vietnam War. While on his very first mission, Navy pilot LTJG Dieter Dengler took damage to his A-1H over Vietnam on 1 February 1966, and crash-landed in Laos.
As they were released from U.S. Navy service, Skyraiders were introduced into the Republic of Vietnam Air Force (RVNAF). Skyraiders were also used by Air Force Special Operations Command for search and rescue air cover. They were also used by the USAF to perform one of the Skyraider's most famous roles — the "Sandy" helicopter escort on combat rescues. On 10 March 1966, USAF Major Bernard F. Fisher flew an A-1E mission and was awarded the Medal of Honor for rescuing Major "Jump" Myers at A Shau Special Forces Camp. USAF Colonel William A. Jones III piloted an A-1H on 1 September 1968 mission for which he was awarded the Medal of Honor. In that mission, despite damage to his aircraft and suffering serious burns, he returned to his base and reported the position of a downed U.S. airman.
After November 1972, all A-1s in U.S. service in Southeast Asia were transferred to the RVNAF. The Skyraider in Vietnam pioneered the concept of tough, survivable aircraft with long loiter times and large ordnance loads. The USAF lost 201 Skyraiders to all causes in Southeast Asia, while the Navy lost 65 to all causes. Of the 266 lost A-1s, five were shot down by surface-to-air missiles (SAMs), and three were shot down in air-to-air combat; two by VPAF MiG-17s.
On the night of 29 August 1964, the first A-1E Skyraider was shot down and the pilot killed near Bien Hoa Air Base; it was flown by Capt. Richard D. Goss from the 1st Air Commando Squadron, 34th Tactical Group. The second A-1 was shot down on 31 March 1965 piloted by USN LTJG Gerald W. McKinley from the USS Hancock on a bombing run over North Vietnam. He was reported missing, presumed dead. The third A-1 was shot down on 29 April 1966, and Pilot Capt. Grant N. Tabor, was lost on 19 April 1967; both were from the 602 Air Commando Squadron. The fifth A-1 Skyraider was from Navy Squadron VA-25 flying a ferry flight from Naval Air Station Cubi Point (Philippines) to USS Coral Sea and was lost to two Chinese MiG-17 on 14 February 1968. Lieutenant (j.g.) Joseph P. Dunn, USN, had flown too close to the Chinese island of Hainan, and had been intercepted. Lieutenant Dunn's A-1H Skyraider 134499 (Canasta 404) was the last U.S. Navy A-1 lost in the war. He was observed to survive the ejection and deploy his raft, but was never found. Initially listed as missing in action, he is now listed as killed in action and posthumously promoted to the rank of Commander. Shortly thereafter, A-1 Skyraider naval squadrons transitioned to the A-6 Intruder, A-7 Corsair II or Douglas A-4 Skyhawk.
In contrast to the Korean War, fought a decade earlier, the U.S. Air Force used the naval A-1 Skyraider for the first time in Vietnam. As the Vietnam War progressed, USAF A-1s were painted in camouflage, while USN A-1 Skyraiders were gray/white in color; again, in contrast to the Korean War, when A-1s were painted dark blue.
In October 1965, to highlight the dropping of the six millionth pound of ordnance, Commander Clarence J. Stoddard of VA-25, flying an A-1H, dropped a special, one-time-only object in addition to his other munitions – a toilet.
Republic of Vietnam Air Force
The A-1 Skyraider was the close air support workhorse of the RVNAF for much of the Vietnam War. The U.S. Navy began to transfer some of its Skyraiders to the RVNAF in September 1960, replacing the RVNAF's older Grumman F8F Bearcats. By 1962 the RVNAF had 22 of the aircraft in its inventory, and by 1968 an additional 131 aircraft had been received. Initially Navy aviators and crews were responsible for training their South Vietnamese counterparts on the aircraft, but over time responsibility was gradually transferred to the USAF.
The initial trainees were selected from among RVNAF Bearcat pilots who had accumulated 800 to 1200 hours flying time. They were trained at NAS Corpus Christi, Texas, and then sent to NAS Lemoore, California for further training. Navy pilots and crews in Vietnam checked out the Skyraiders that were being transferred to the RVNAF, and conducted courses for RVNAF ground crews.
Over the course of the war, the RVNAF acquired a total of 308 Skyraiders, and was operating six A-1 squadrons by the end of 1965. These were reduced during the period of Vietnamization from 1968 to 1972, as the U.S. began to supply the South Vietnamese with more modern close air support aircraft, such as the A-37 Dragonfly and Northrop F-5, and at the beginning of 1968, only three of its squadrons were flying A-1s.
As the U.S. ended its direct involvement in the war, it transferred the remainder of its Skyraiders to the South Vietnamese, and by 1973, all remaining Skyraiders in U.S. inventories had been turned over to the RVNAF. Unlike their American counterparts, whose combat tours were generally limited to 12 months, individual South Vietnamese Skyraider pilots ran up many thousands of combat hours in the A-1, and many senior RVNAF pilots were extremely skilled in the operation of the aircraft.

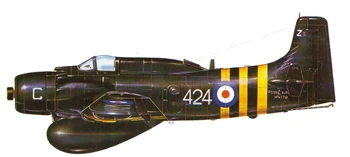

The Royal Navy acquired 50 AD-4W early warning aircraft in 1951 through the Military Assistance Program. All Skyraider AEW.1s were operated by 849 Naval Air Squadron, which provided four-plane detachments for the British carriers. One flight aboard HMS Bulwark took part in the Suez Crisis in 1956. 778 Naval Air Squadron was responsible for the training of the Skyraider crews at RNAS Culdrose.
In 1960, the Fairey Gannet AEW.3 replaced the Skyraiders, using the APS-20 radar of the Douglas aircraft. The last British Skyraiders were retired in 1962. In the late 1960s, the APS-20 radars from the Skyraiders were installed in Avro Shackleton AEW.2s of the Royal Air Force which were finally retired in 1991.
Fourteen British AEW.1 Skyraiders were sold to Sweden to be used by Svensk Flygtjänst AB between 1962 and 1976. All military equipment was removed and the aircraft were used as target tugs with the Swedish armed forces.
The French Air Force bought 20 ex-USN AD-4s as well as 88 ex-USN AD-4Ns and five ex-USN AD-4NAs with the former three-seaters modified as single-seat aircraft with removal of the radar equipment and the two operator stations from the rear fuselage. The AD-4N/NAs were initially acquired in 1956 to replace aging Republic P-47 Thunderbolts in Algeria.
The Skyraiders were first ordered in 1956 and the first was handed over to the French Air Force on 6 February 1958 after being overhauled and fitted with some French equipment by Sud-Aviation. The aircraft were used until the end of the Algerian war. The aircraft were used by the 20e Escadre de Chasse (EC 1/20 "Aures Nementcha", EC 2/20 "Ouarsenis" and EC 3/20 "Oranie") and EC 21 in the close air support role armed with rockets, bombs and napalm.
The Skyraiders had only a short career in Algeria, but they nonetheless proved to be the most successful of all the ad hoc COIN aircraft deployed by the French. The Skyraider remained in limited French service until the 1970s. They were heavily involved in the civil war in Chad, at first with the Armée de l'Air, and later with a nominally independent Chadian Air Force staffed by French mercenaries. The aircraft also operated under the French flag in Djibouti and on the island of Madagascar. When France at last relinquished the Skyraiders it passed the survivors on to client states, including Gabon, Chad, Cambodia and the Central African Republic. (Several aircraft from Gabon and Chad have been recovered recently by French warbird enthusiasts and entered on the French civil register).
The French frequently used the aft station to carry maintenance personnel, spare parts and supplies to forward bases. In Chad they even used the aft station for a "bombardier" and his "special stores" – empty beer bottles – as these were considered as non-lethal weapons, thus not breaking the government-imposed rules of engagement, during operations against Libyan-supported rebels in the late 1960s and early 1970s.
