The E-190/195 models are a larger stretch of the E-170/175 models fitted with a new, larger wing, larger

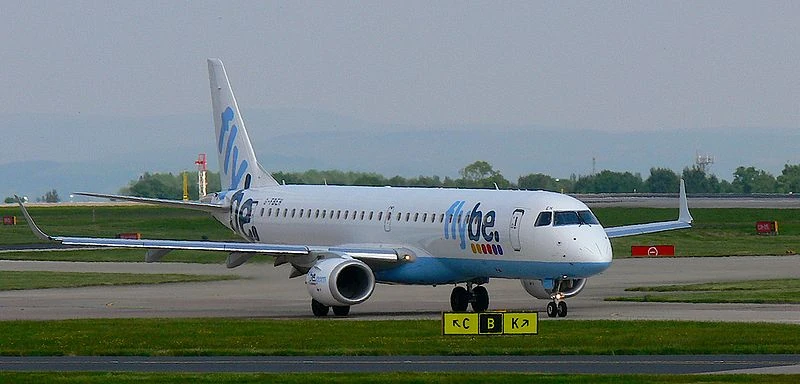

800px-Flybe-man

An 195.

horizontal stabilizer and a new engine, the GE CF34-10E, rated at 18,500 lb (82.30 kN). These aircraft compete with the Bombardier CRJ-1000 and CS100, the Boeing 717-200 and 737-600, and the Airbus A318.The first flight of the E-190 was on March 12, 2004 (PP-XMA), with the first flight of the E-195 (PP-XMJ) on December 7 of the same year. The launch customer of the E-190 was New York-based low-cost carrier JetBlue with 100 orders and 100 options. British low-cost carrier Flybe launched the E-195 with 14 orders and 12

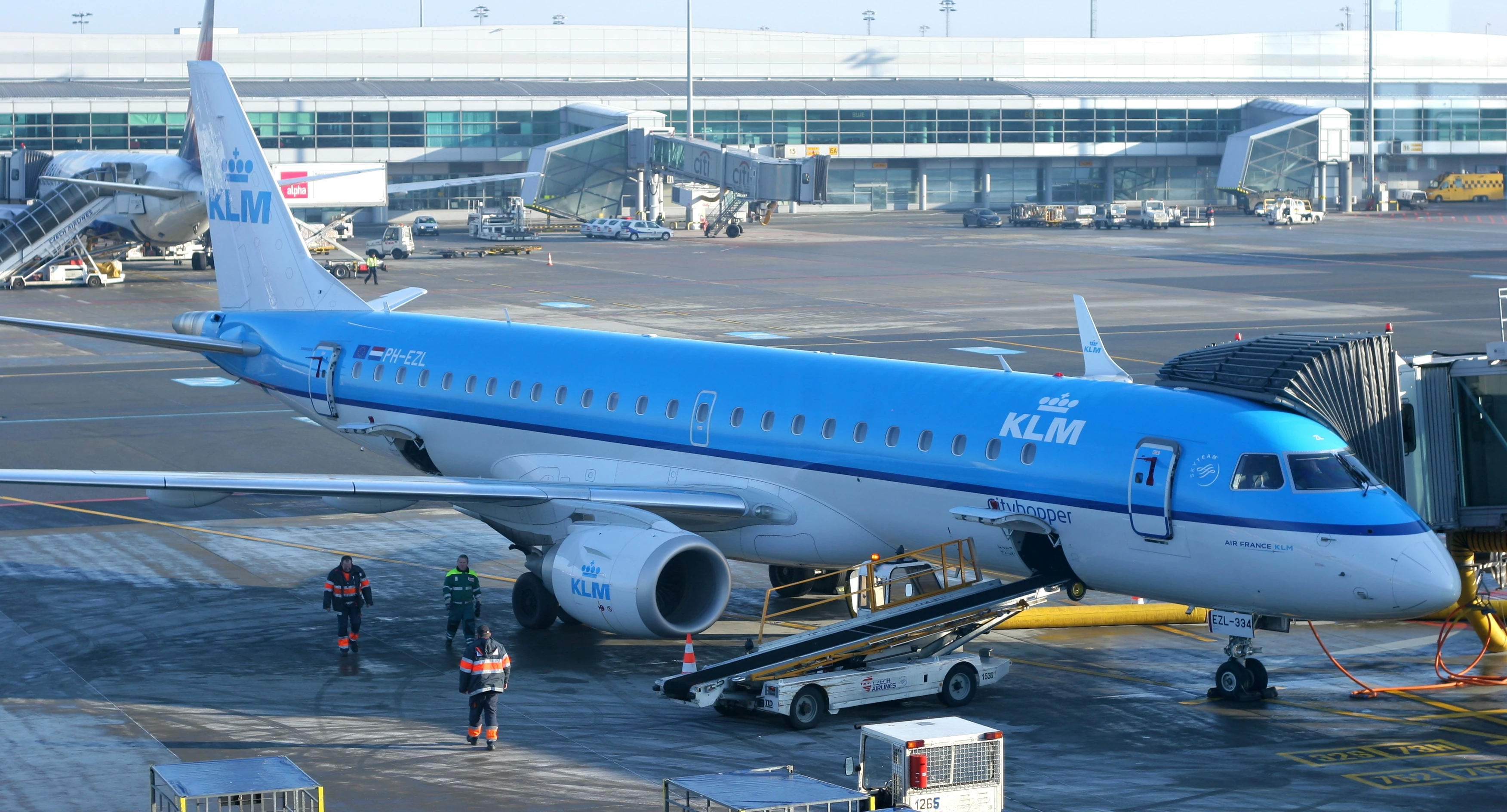

Embraer-190-KLM
options.As the 190/195 models are of mainline aircraft size, many airlines operate them as such, fitting them with a business class section and operating them themselves, instead of having them flown by a regional airline partner. For example, Air Canada operates 45 E-190 aircraft fitted with 9 business-class and 88 economy-class seats as part of its primary fleet.

Specifications Edit

E190 E195
Flight crew 2 2
Single class seats 100@31/32" - 114@29/30" 116@31/32" - 124@29-31"
Dual class seats 96 (8F@38", 88@31") 100 (12F@42", 88Y@33")
Height x width 6' 7" x 9' (2 m x 2.74 m) 6' 7" x 9' (2 m x 2.74 m)
Length 118' 11" (36.24 m) 126' 10" (38.65 m)
Wingspan 94' 3" (28.72 m) 94' 3" (28.72 m)
Wing area 996 sq ft (92.53 sq m) 996 sq ft (92.53 sq m)
Aspect ratio 8.91 8.91
Height 34' 8" (10.57 m) 34' 7" (10.55 m)
MTOW 114,199 lb (51,800 kg) 115,280 lb (52,290 kg)
Basic operating 61,370 lb (27,837 kg) 63,200 lb (28,667 kg)
Max payload 28,800 lb (13,063 kg) 30,716 lb (13,933 kg)
Max fuel 28,596 lb (12,971 kg) 28,596 lb (12,971 kg)
Turbofans 2x GE CF34-10E 2x GE CF34-10E
Thrust 2x 20,000 lbf (89 kN) 2x 20,000 lbf (89 kN)
Max. speed Mach .82 (541 mph, 470 kn, 871 km/h) Mach .82 (541 mph, 470 kn, 871 km/h)
Cruise Mach .78 (515 mph, 447 kn, 829 km/h) Mach .78 (515 mph, 447 kn, 829 km/h)
Ceiling 41,000 ft (12,000 m) 41,000 ft (12,000 m)
Takeoff (MTOW, ISA, SL) 6,890 ft (2,100 m) 7,149 ft (2,179 m)
Landing (MLW, ISA, SL) 4,081 ft (1,244 m) 4,183 ft (1,275 m)
